Formwork accessories-wing Nut, tie rod, water stop

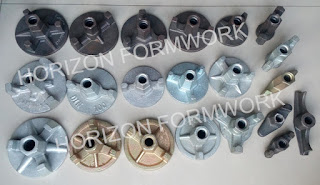

Cast Formwork wing nut, form work tie nut
Working with tie rod, formwork wing nut is to hold and fasten formwork panels tightly.
Various thread are available, such as: for tie rod dia 15/17mm and dia 20/22mm.
Customized shape and sizes are available on request.
Materials: Ductile casting
Finishing: Self colour, or zinc plated.

Bar Ø (mm)	Plate Ø (mm)	Height /Hex (mm)	Weight (Kg)
15	90	55/27	0.50
15	100	55/27	0.65
15	110	55/27	0.80
20	120	60/36	1.00

Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.

H. Chang

Tel.: +86-319 318 8757

Fax.: +86-319 861 1795

Mob: +86-186 1762 1636

Skype: honwaychang

E-mail: sales@horizonform.com

www.facebook.com/formwork.scaffolding

www.horizonformwork.com; www.horizon-formwork.com;

Concrete Formwork for Pouring Shear Wall and Column

Concrete Formwork for pouring shear wall and column
High flexibility with only a few main components can meet any construction requirements. Timber beam H20, steel waling, plywood and clamp etc...These components can be combined for all shapes, even with the restructuring of wall form work units when a frequent change of the building structure plans happens.
Advantages:
1. Can create any shape and size of shear wall formwork with any thickness.
2. Can choose whichever form face material best meets your requirements - e. G. For smooth fair-faced concrete.
3. Depending on the concrete pressure required, the beams and the steel waling are spaced closer or apart. This ensures optimum form-work design and the greatest economy of materials.
4. Can be pre-assembled on your site or before arrival at your site, saving time, cost and space for you.
5. Can match well with most Euro formwork systems.

H. Chang

Tel.: +86-319 318 8757

Fax.: +86-319 861 1795

Mob: +86-186 1762 1636

Skype: honwaychang

E-mail: sales@horizonform.com

www.facebook.com/formwork.scaffolding

www.horizonformwork.com; www.horizon-formwork.com;

High Efficient Table Formwork for Slab Construction

High Efficient Table Formwork for Slab Construction
HORIZON table formwork is designed to be used typically in large area slab concreting. The tables can be shifted horizontally and vertically without being dismantled, which provides a cost-effective and efficient solution for the slab work on site.
Advantages:
1. Table formwork is assembled on site and shifted from one area to another without dismantling, thus minimising added risks in erection and dismantling.
2. Very easy assembly, erection and striping, which reduce labor cost.
3. Safety. Handrails are available and assembled in all the perimeter tables, and all these work are done at ground before the tables are put in place.
4. The tableform height and leveling is quite easy to adjust by means of adjusting props height.
5. The tables are easy to move horizontally and vertically with help of trolley and crane.
6. Can match well with most Euro systems, such as doka, peri, ulma, etc.
